玩转 EhCache 缓存框架

文章原文:https://mp.weixin.qq.com/s/VdwC9Dm6rfjiT8PbikNOqw

Spring Boot 作为主流微服务框架,拥有成熟的社区生态。市场应用广泛,为了方便大家,整理了一个基于spring boot的常用中间件快速集成入门系列手册,涉及RPC、缓存、消息队列、分库分表、注册中心、分布式配置等常用开源组件,大概有几十篇文章,陆续会开放出来,感兴趣同学请提前关注&收藏

Ehcache 介绍

EhCache 从 Hibernate 发展而来,是一个纯Java的进程内缓存框架,具有快速、精干等特点。Ehcache是一种广泛使用的开源Java分布式缓存。主要面向通用缓存,Java EE和轻量级容器。它具有内存和磁盘存储,缓存加载器,缓存扩展,缓存异常处理程序,一个gzip缓存servlet过滤器,支持REST和SOAP api等特点。

主要特性:

  • 快速,简单
  • 多种缓存策略
  • 缓存数据有两级:内存和磁盘,因此无需担心容量问题
  • 缓存数据会在虚拟机重启的过程中写入磁盘
  • 可以通过RMI、可插入API等方式进行分布式缓存
  • 具有缓存和缓存管理器的侦听接口
  • 支持多缓存管理器实例,以及一个实例的多个缓存区域
  • 提供Hibernate的缓存实现

微观技术
微观技术

业务架构、职业规划、源码解读等,畅想技术改变人生
78篇原创内容

公众号

Show me the code

在 pom.xml 文件中添加 Ehcache 依赖

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-cache</artifactId>
</dependency>
<dependency>
    <groupId>net.sf.ehcache</groupId>
    <artifactId>ehcache</artifactId>
</dependency>

不需要配置version,SpringBoot的根pom已经对版本号做了统一声明!

配置文件:

在配置文件 application.yaml 中配置 ehcache 的相关参数,具体内容如下:

spring:
  application:
    name: spring-boot-bulking-ehcache

  cache:
    type: ehcache
    ehcache:
      config: classpath:/ehcache.xml

spring.cache.type 声明spring框架使用哪一种类型的缓存,因为spring框架提供了多种缓存可供选择。

添加 Ehcache 配置:

src/main/resources 目录下,创建配置文件ehcache.xml ,内容如下:

<ehcache name="test">
    <diskStore path="java.io.tmpdir"/>
    <defaultCache
            maxEntriesLocalHeap="1000"
            eternal="false"
            timeToIdleSeconds="300"
            timeToLiveSeconds="600"
            overflowToDisk="true"
            memoryStoreEvictionPolicy="LRU">
    </defaultCache>
    <cache name="userCache"
           maxEntriesLocalHeap="200"
           eternal="false"
           timeToIdleSeconds="300"
           timeToLiveSeconds="600"
           overflowToDisk="true">
    </cache>
</ehcache>

参数含义:

  • diskStore:磁盘缓存位置
  • name:缓存名称
  • maxElementsInMemory:内存中最大缓存对象数
  • maxElementsOnDisk:硬盘中最大缓存对象数,若是0表示无穷大
  • eternal:true表示对象永不过期,此时会忽略timeToIdleSeconds和timeToLiveSeconds属性,默认为false
  • timeToIdleSeconds:设定允许对象处于空闲状态的最长时间,以秒为单位。当对象自从最近一次被访问后,如果处于空闲状态的时间超过了timeToIdleSeconds属性值,这个对象就会过期,EHCache将把它从缓存中清空。只有当eternal属性为false,该属性才有效。如果该属性值为0,则表示对象可以无限期地处于空闲状态
  • timeToLiveSeconds:设定对象允许存在于缓存中的最长时间,以秒为单位。当对象自从被存放到缓存中后,如果处于缓存中的时间超过了 timeToLiveSeconds属性值,这个对象就会过期,EHCache将把它从缓存中清除。只有当eternal属性为false,该属性才有效。如果该属性值为0,则表示对象可以无限期地存在于缓存中。timeToLiveSeconds必须大于timeToIdleSeconds属性,才有意义
  • overflowToDisk:当内存中对象数量达到maxElementsInMemory时,Ehcache将会对象写到磁盘中。
  • diskSpoolBufferSizeMB:磁盘缓存区大小,默认为30MB。每个Cache都应该有自己的一个缓存区。
  • diskPersistent:是否缓存虚拟机重启期数据。
  • diskExpiryThreadIntervalSeconds:磁盘失效线程运行时间间隔,默认是120秒。
  • memoryStoreEvictionPolicy:当达到maxElementsInMemory限制时,Ehcache将会根据指定的策略去清理内存。默认策略是LRU(最近最少使用)。你可以设置为FIFO(先进先出)或是LFU(较少使用)。
  • clearOnFlush:内存数量最大时是否清除。

开启缓存:

入口启动类添加注解 @EnableCaching

@SpringBootApplication(exclude = {DataSourceAutoConfiguration.class,
        DataSourceTransactionManagerAutoConfiguration.class})
@EnableCaching  // 开启缓存,Spring Boot 会自动配置缓存的 CacheManager
public class StartApplication {

    public static void main(String[] args) {
        SpringApplication.run(StartApplication.class, args);
    }
}


缓存业务使用:

@Component
@CacheConfig(cacheNames = "userCache")
public class UserService {

    @Cacheable(key = "#id")
    public User getUserById(Long id) {
        System.out.println("缓存中无值");
        User user = User.builder().id(id).userName("雪糕(" + id + ")").age(18).address("杭州").build();
        return user;
    }

    @CachePut(key = "#user.id")
    public User updateUser(User user) {
        user.setUserName("雪糕(new name)");
        return user;
    }

    @CacheEvict(key = "#id")
    public void deleteById(Long id) {
        System.out.println("db 删除数据,id=" + id);
    }
}
  • @CacheConfig  作用于类上,用来描述该类中所有方法使用的缓存名称。当然也可以不使用该注解,直接在具体方法上的缓存注解里配置名称
  • @Cacheable 用于查询方法上,表示将一个方法的返回值缓存起来。默认情况下,缓存的 key 就是方法的参数,缓存的 value 就是方法的返回值
  • @CachePut  更新操作,当数据库中的数据更新后,缓存中的数据也要跟着更新,使用该注解,可以将方法的返回值自动更新到已经存在的 key 上
  • @CacheEvict  删除操作,当数据库中的数据删除后,相关的缓存数据也要自动清除。

除了采用 @Cacheable 、@CachePut 等方法注解解耦式操作缓存外,我们也可以使用 CacheManager显示方式手动来操作缓存。

CacheManager

Spring定义了CacheManagerCache接口统一不同的缓存技术。其中CacheManager是Spring提供的各种缓存技术的抽象接口,而Cache接口包含缓存的读、写、删等各种操作。

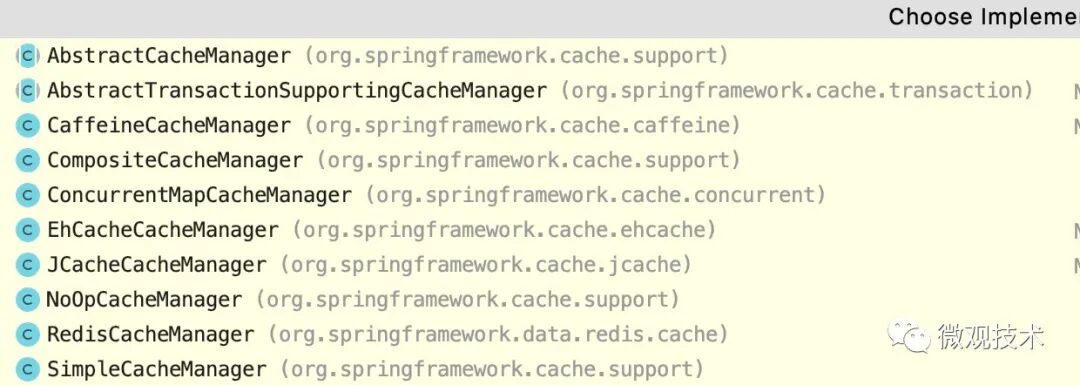

针对不同的缓存技术,需要实现不同的CacheManager,Spring预先定义了主流缓存框架的cacheManger实现类


CacheManager描述
SimpleCacheManager使用简单的Collection来存储缓存,主要用于测试
ConcurrentMapCacheManager使用ConcurrentMap作为缓存技术(默认)
NoOpCacheManager测试用
EhCacheCacheManager使用EhCache作为缓存技术,以前在hibernate的时候经常用
GuavaCacheManager使用google guava的GuavaCache作为缓存技术
HazelcastCacheManager使用Hazelcast作为缓存技术
JCacheCacheManager使用JCache标准的实现作为缓存技术,如Apache Commons JCS
RedisCacheManager使用Redis作为缓存技术
CaffeineCacheManager使用Caffeine作为缓存技术

Spring Boot 为我们预留接口扩展,方便我们自动配置 EhCache、Redis、Guava、ConcurrentMap等缓存,默认使用ConcurrentMapCacheManager。Spring Boot的application.yaml配置文件,使用spring.cache前缀属性进行配置。

本文我们使用 EhCache 缓存,代码示例如下:

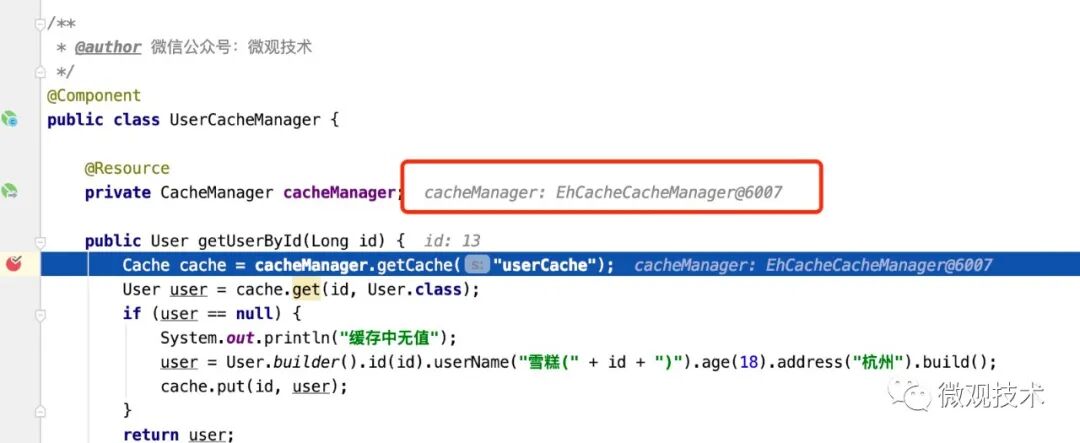

@Component
public class UserCacheManager {

    @Resource
    private CacheManager cacheManager;

    public User getUserById(Long id) {
        Cache cache = cacheManager.getCache("userCache");
        User user = cache.get(id, User.class);
        if (user == null) {
            System.out.println("缓存中无值");
            user = User.builder().id(id).userName("雪糕(" + id + ")").age(18).address("杭州").build();
            cache.put(id, user);
        }
        return user;
    }

    public User updateUser(User user) {
        user.setUserName("雪糕(new name)");
        Cache cache = cacheManager.getCache("userCache");
        cache.put(user.getId(), user);
        return user;
    }

    public void deleteById(Long id) {
        Cache cache = cacheManager.getCache("userCache");
        cache.evict(id);
        System.out.println("db 删除数据,id=" + id);
    }
}

演示代码地址

https://github.com/aalansehaiyang/spring-boot-bulking

模块:spring-boot-bulking-ehcache
